AC magnetic field radiation measurement equipment
Single AXIS DIGITAL AC GAUSSMETER
|
Typical Applications include checking the 50 and 60 HZ electric and magnetic fields (emf) produced by such equipment as transmission lines, computers, electric blankets, electric appliances, televisions, etc.. Magnetic fields are invisible radiations, the best method to detect them is by using one of the accurate gauss meter from Integrity Design & Research corp. |
||
|
|
|
 |
|
|
 |
|
|
 |
EMF/ELF Meter Measure electromagnetic field radiation levels from fans, electrical appliances, wiring, and power lines
|
|
|
|
|
 |
Electromagnetic field radiation (EMF) may cause cancer,
birth defects, learning disabilities, miscarriages, immune deficiencies
and other diseases.
To protect yourself, detect electromagnetic fields and eliminate the "hot spots" radiations from your office and your home by using one of the Integrity Design Models listed. |

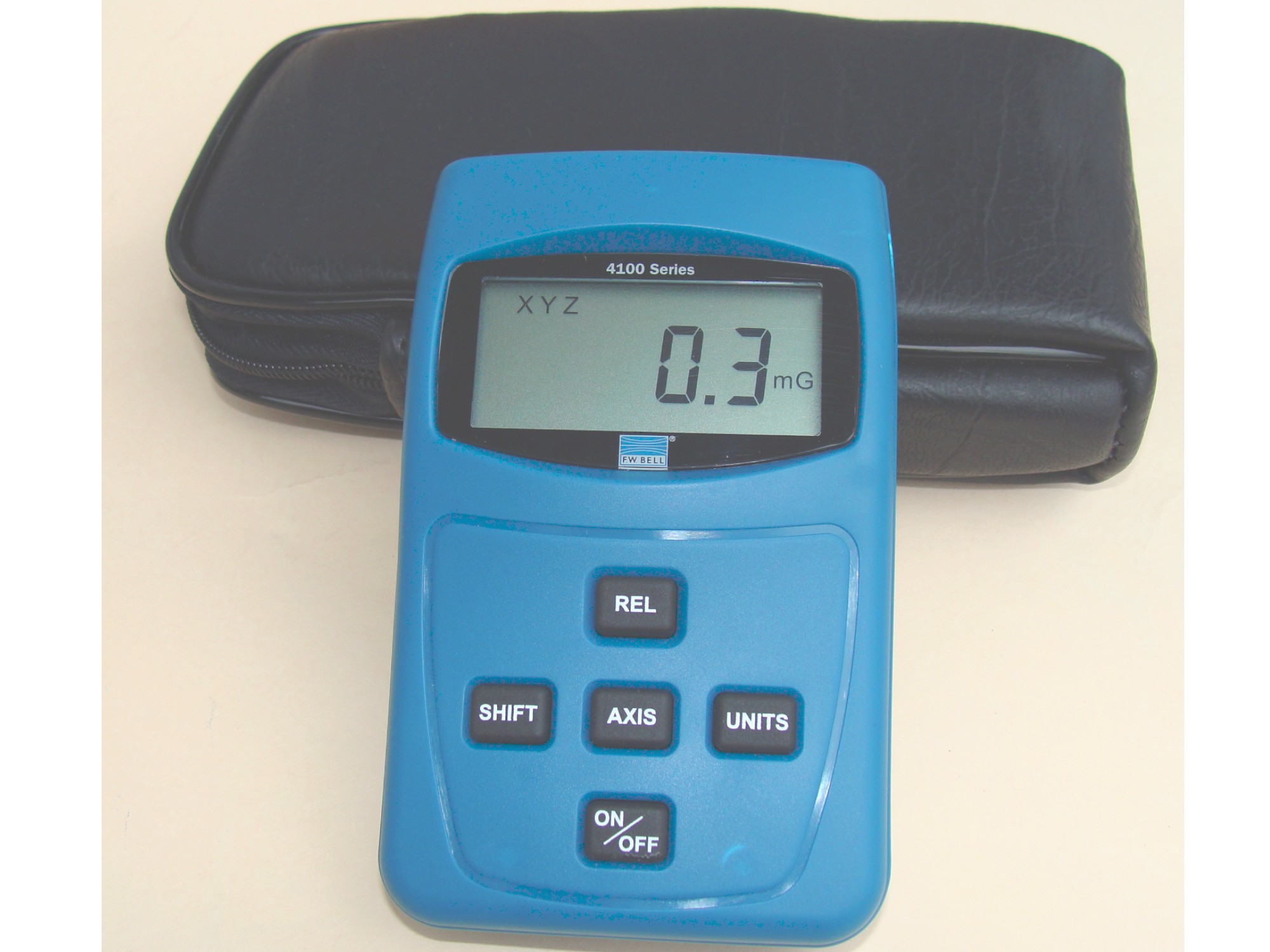

3 AXIS DIGITAL 50/60HZ AC GAUSSMETER
Low Cost, High Quality 3-Axis Meter
This model features three axis sensors which insure that
measurements remain accurate regardless of the orientation of the instrument.
Lightweight and self-contained, this unit is ideal for commercial and home use. This model accurately measures Extremely Low Frequency magnetic fields (ELF) generated by electrical equipment. Applications include detecting magnetic field emissions from a wide variety of sources, including video display terminals (VDTs), AC power lines, office equipment, household appliances, and all types of electric and electronic equipment.
This meter is auto-ranging with 3 1/2 digit LCD, true RMS
and includes a deluxe carrying
case, 9 volt alkaline battery, and a one year mfr. warranty. Amazing high
accuracy of ±(2% +1) digit, resolution 0.1mG, calibrated @ 60Hz, operating temp.
0 deg.C to 50 deg.C, weight 5 OZ, 4.7"H 2.4"W 1.0"D,
wide frequency response: 25-1000 Hz, covers 0.1
- 511 mG. Accuracy traceable to NIST standards. Highly recommended!
3 AXIS DIGITAL AC GAUSSMETER: IDR-fw4080 ........... $295.00

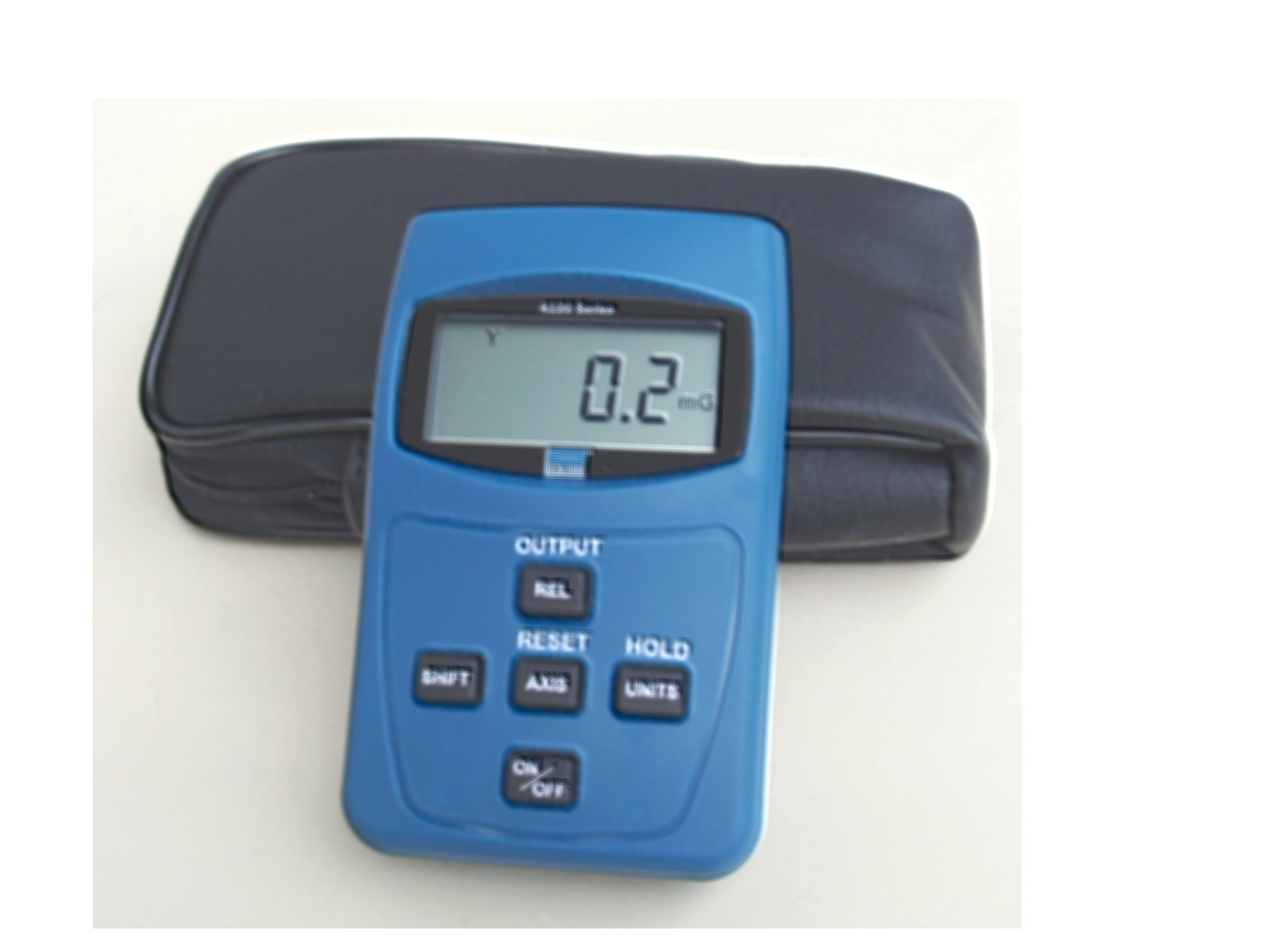

PROFESSIONAL 3-AXIS DIGITAL GAUSSMETER
Switchable Single and Triple Axis Measurements
For professional results, this meter offers the ultimate in accuracy and features: extended frequency bandwidth, superb accuracy, single axis and 3-axis modes, auto-ranging from 0.1 to 1999 mG, an A - Analog Output option provides a buffered output for viewing the analog waveform on an oscilloscope, spectrum analyzer, or similar test equipment. This is useful for determining harmonic content and other waveform properties. (z -axis only), a D- DC Output option provides a voltage level proportional to the displayed level of the magnetic field. It is useful for driving chart recorders, data loggers, and other data acquisition equipment. Hand held, and completely self-contained, it is extremely fast and easy to use. Simply turn the unit on and take true RMS 3-axis readings. To activate the single-axis Mode, depress the push-button on the top panel firmly once to view the X-axis component of the field strength, a second press gives the Y-axis component, a third press shows the Z-axis. This is a really fine piece of equipment at a great price. Made is USA. Full year warranty. Accuracy traceable to NIST standards. 9V battery included.
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Output impedance is 4000 Ohms |
Professional 3-Axis Digital Gaussmeter: IDR-fw4090..... $794.00
New!
Professional 3-Axis
Digital Gaussmeter, economy version
IDR-fw490e ……. $567.00
Save $210! All the same features
and specifications of the meter above,
except: no voltage outputs, and
3-axis mode only (no single axis mode).
